VVDI2 ID48 Chip Copy data collector (Condor 등록 필요 없음)
주의: Xhorse VVDI2 ID48 Copy 기능의 인증을 받아야 합니다.
VVDI2(품번 11070)과 함께 사용하는 VVDI2 ID48 Chip Copy data collector는 4새대 이모비를 가지고 있는 ID48 트랜스폰더를 복사할 수 있습니다.
지지하는 유형: NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.
48 칩을 복사하려면 다음이 필요합니다.
-With the 1000 member points on VVDI2, you could use to exchange 48 chip copy function
-VVDI2 has 4th Immobilizer system function
-VVDI2 48 chip data collector
-New 48 Chip
-100 member points for one-time 48 Chip copy
How to use VVDI2 Copy 48 96bit Transponder?
In V5.5.0 VVDI2 Newest software,you can click ID48 Copy software in Quick start tool software.
1.Prepare the working key and 48 collector.
Copy 48 tranponder(96bit), support all cars with ID48 transponder, support latest VAG cars with 48 transponder before 2018.
Support VW,AUDI,Skoda,Seat,Honda,Buick,Cadillac,Fiat,Greatewall,Zhonghua,Volvo etc.
2.Collect data
1)Connect VVDI-collector to VVDI2.
2)Put VVDI-collector neat to ignition switch or ignition coil.
3)Insert working key to switch ON ACC,take off working key from ignition switch, repeat this until finished.
4)If car with keyless go function,remove the battery and put working key nearby igniton coil,then remove key and switch OFF.
5)After collect data,input working key to vvdi2 coil to verify.
3.Upload the collected data to server.The cloud server will calcuate the result.
Attention:Every success calculate will cost 100 remote points.
After you get the success calculate result,no need calcuate anymore.
4.Query result from server, after success you can save the "Calculate 48 data".You can copy/prepare key with "Calculate 48 data".
5.Use "Calculate 48 data" to copy original working key.
Supported type:
48 chip copy function applies to 4th Immobilizer system, the supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.
Function:
In the process of coping 48 chip, it requires PIN code and component security bytes from car, you can select any of following method:
1) VVDI2 can read out the PIN code from Engine Control Unit (ECU) via OBDII and CS
2) You have component security bytes and PIN code
It can copy 48 chip, add 48 chip, support 48 all key lost and support smart key.
For MAGOTAN / CC, it can only copy 48 chip with original key, not support 46 chip, smart key and all key lost.

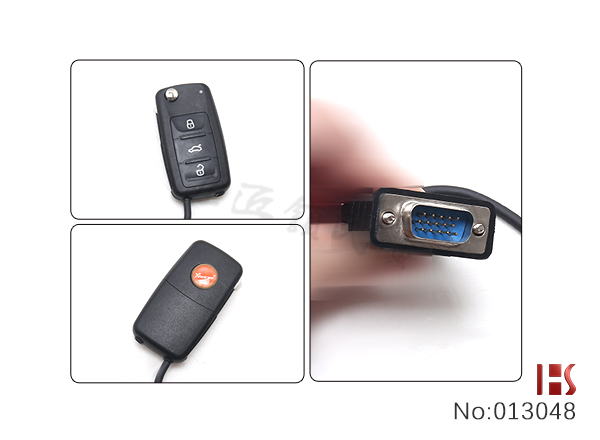

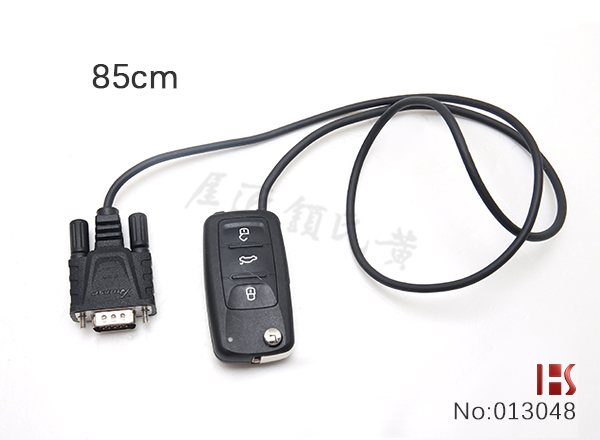

XHORSE VVDI2 48 Chip Copy Display:
|
