AUTEL XP400 Pro 어댑터 특수 검출기 IM508/IM608/IM608 Pro용

Use the XP400Pro key and chip programmer with the IM508 and IM608 and IM608pro to read/write and learn keys, program infrared keys for Mercedes vehicles and IC Chip keys on late model Hyundai KIA vehicles. The XP400Pro also performs EEPROM-data functions needed for European vehicles and supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU).

Compared to the original XP400, the newer XP400Pro:
* is a more stable EEPROM device
* compatible with more chip types: EEPROM, MCU, Immobilizer
* does more BMW
* does more Benz
* does Key Read/Write

• Expanded EEPROM functions for more component access
• 170+ types Odometer component reading funcitons
• 180+ Immobilizer ECU component types
• 40+ Engine ECU component types
• 2000+ MCU component types
• 440+ EEPROM component types
• Compatible with IM508 and IM608 and IM608pro
• Includes 1-Year Warranty

• Free Software Updates for Life of Tool

The XP400pro is included with the MaxiIM IM608pro.

Upgrade the IM508 with the XP400pro and the IMKPA to perform all the same Key and IMMO functions as the IM608pro.

SMART MODE (GUIDED & AUTOMATED KEY LEARNING)
• Compatible with Most Aftermarket Keys Key FOBs & MCU/EEPROM Chips
• Key Read/Write
• MCU & EEPROM Chip Read/Write
• IC Card Read/Write
• Remote Control Frequency Detect
• Mercedes Infrared Key Read/Write

EXPERT MODE ADVANCED KEY LEARNING
• Read PIN/CS & All Keys Lost
• Read PIN/CS (All Keys Lost)
• IMMO ECU Reset/Adaptation
• IMMO ECU Refresh/Coding
• Remote Learning
• Backup/Restore EEPROM Data
• Backup/Restore IMMO Data
• BMW FEM/BDC Key Learning & Adaptation
• AUDI Q5/A4/A5 2015-2017 Read PIN/CS

XP400 Pro Specifications:
*Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
*Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)

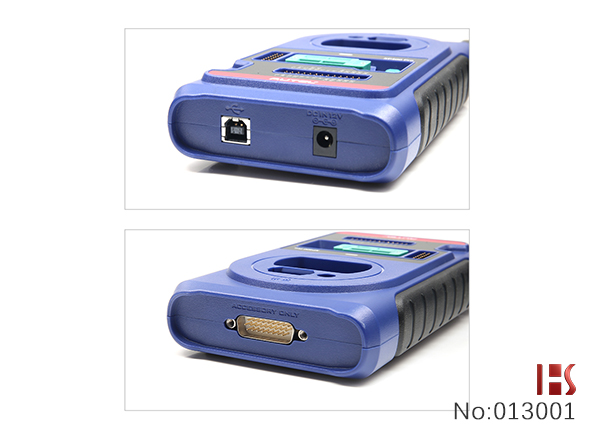

*Port Type: B-USB, DB26, DC12
*Input Voltage: 5 VDC, 12VDC
*Operating Current: < 500 mA
*Maximum Consumption: 2.5 W

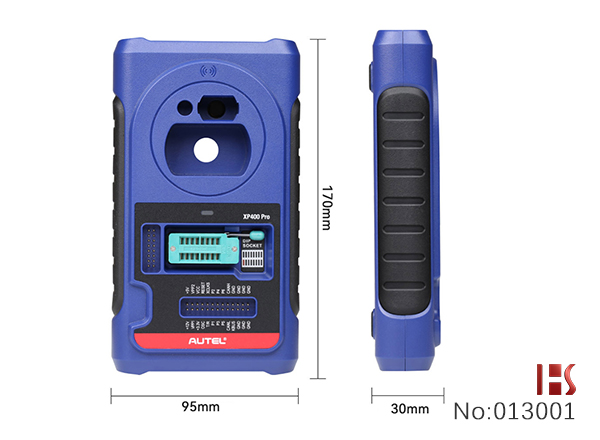

*Device Dimensions: (L*W*H) 168 mm*98 mm*30 mm
*Net Weight: 520g

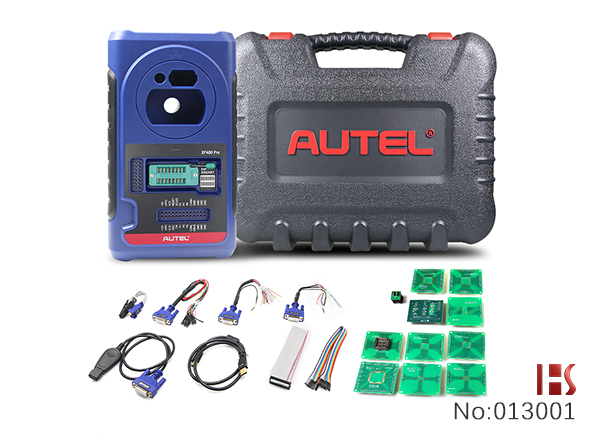

XP400 Pro Package List:
1 x XP400 Pro Main Unite
1 x APB129 – EEPROM Adapter
1 x APA002 – EEPROM Socket
1 x APB125 – Mercedes Infrared Collector

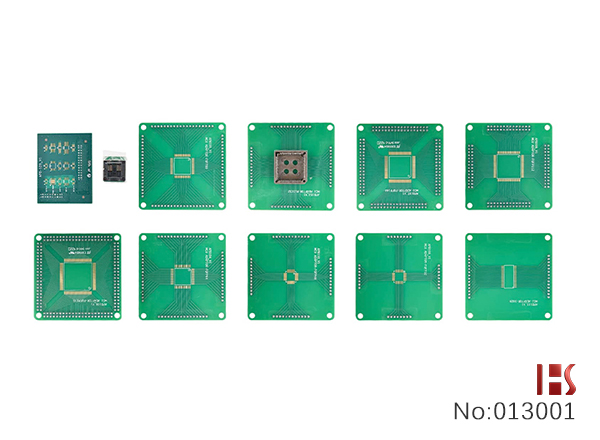

1 x APB103 – MCU_PLCC52 Adapter
1 x APB104 – MCU_FQFP64 Adapter
1 x APB105 – MCU_FQFP80 Adapter
1 x APB106 – MCU_FQFP112 Adapter
1 x APB107 – MCU_FQFP144 Adapter
1 x APB108 – MCU_FQFP176 Adapter
1 x APB109 – MCU_FQFP32 Adapter
1 x APB110 – MCU_FQFP48 Adapter
1 x APB111 – MCU_SO28 Adapter

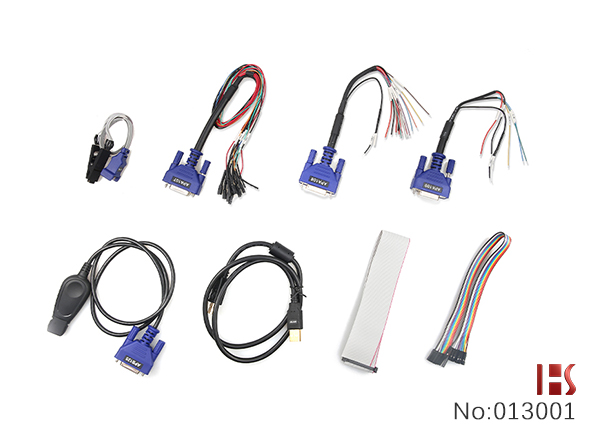

1 x APA101 – Spare Signal Cable
1 x APC101 – USB Cable (Standard USB –Type B USB)
1 x APA103 – EEPROM Clamp
1 x Dupont Line
1 x APA107 – E/C/U Cable
1 x APA108 – MCU Cable
1 x APA109 – MC9S12 Cable
