Xhorse KEY TOOL PLUS 개요
KEY TOOL PLUS는 자동차 키서비스를 제공하는 업체를 위한 ALL IN ONE 자동차 보안 해결 제안을 제공하는 장비입니다.
이 장비는 이모빌라이저 등록, 리모컨의 생성, 트랜스 폰더 칩의 복사, 차량 데이터 읽기 및 쓰기와 같이 다양한 기능을 이 장비 하나 안에 포함되었습니다. 또한 Xhorse에서 개발한 키제작 머신과 연결해서 제어 할 수 있습니다.
KEY TOOL PLUS는 OBD 케이블로차량에 연결하여 대부분 차량에서 OBD immo 프로그래밍 및 기타 OBD 기능을 완료 할 수 있습니다.
현재 KEY TOOL PLUS는 Benz, BMW, Audi, VW, Toyota, Honda, Mazda, Ford, Cadillac, Hyundai, Kia,
Renault, Nissan, SEAT, Fiat, JEEP 및 Chrysler와 같은 많은 자동차 브랜드를 지지합니다.
VVDI Key Tool Plus Full Advantages
1. Much easier to complete various automotive programming anywhere with no need to take your laptop, mobile phone.
2. VVDI KEY TOOL PLUS supports basic functions of a Key Tool, such as remote generating, cloning, transponder detection, and IMMO programming for VW & Audi, BMW, and Benz. Besides, it's available to work with key cutting machines developed by Xhorse.
3. The most advanced application processor of KEY TOOL PLUS, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.
VVDI Key Tool Plus Functions:
1.Powerful functions:
√ Support DOIP
√Support CAN-FD
√Support CAN and K protocol switch pin
√Support Chip pin detection
√Support Toyota smart key programming without simulator
√Support Long-distance IMMO collection
2.Built Components
OBD matrix switch
Radiofrequency simulator
Smart key simulator
integrated key identification coil
BENZ infrared reading head
3.All in one automotive solution
4.IMMO programming for Benz, BMW, Audi, VW and common car brands - Toyota, Honda, Mazda, Ford, etc.
KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.
Especially for IMMO programming on luxury car brands - Benz, BMW, Audi, VW
For VW & Audi:
√3rd / 4th / 5th generation √MQB √MED17/EDC17
KEY TOOL PLUS provides users with functions including key programming, key learning, etc. to best resolve most problems, they met in I MMO programming for Volkswagen and AUDI cars.
BMW IMMO Programming
KEY TOOL PLUS can achieve BMW CAS1/ CAS2 /CAS3 /CAS3+ /CAS4 /CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc. Getting work done has never been easier.
Benz IMMO Programming
√FBS3 standard keys and FBS3 keyless-go keys
√Smart keys, all keys lost, add keys, enable & disable keys
√EIS/EZS, ELV, ECU, gearbox, and ISM replacement
KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and EIS/EZS，ELV, ECU, gearbox, ISM replacing.
VVDI Key Tool Plus Pad Newest Update: Support VVDI VW 5C (MQB478)
WE MAKE IT FIT FOR MORE LUXURY CAR BRANDS
5.VVDI Key Tool Plus Incorporate Prog Function:
Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
Support Land Rover RFA module reading and immo programming.
Support Porsche BCM programming.
Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
Support Instrument programming on HONDA, KIA, and HYUNDAI.
Support EEPROM reading and writing: support reading & writing most types of transponders in the market.such as:ATMEL, Mitsubishi, Winbond, Catalyst, ST ,XICOR, Microchip, SEIKO, Xhorse, MXIC,Toshiba
(Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)
6.IMMO DATA TOOL (FILE MAKE KEY) Function Improved
Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system.Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.
[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]
KEY TOOL PLUS supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.
7.Control Xhorse Key Cutting Machine
KEY TOOL PLUS is available to control the key cutting machines (CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.
8.KEY TOOL PLUS - Maintenance Function. Meet your working demands in every way. (It's projected to release more diagnostic functions. Stay tuned!)
Supports Oil Reset, EPB, TPMS, BMS, Trans adaptation, Throttle, Injector, SAS, TEC Learn, Heanlamp ...
VVDI Key Tool Plus Processor:
4xCortex-A53 up to 2.3Ghz
4xCortex-A53 up to 1.8Ghz
Memory 4G+ Storage 128G
Resolution up to FHD+ (2,400*1,080)
VVDI Key Tool Plus Parameters
CPU: 8-core 2GHz
RAM+ROM: 4G+128G
Operation System: Android 9.0
Screen Size: 10.1" HD Anti-glare; Anti-fingerprint
Rear HD Camera: 13.0MP
Battery Capacity: 10000mAh
Charging: 30W Super Fast Charge
Bluetooth: 5.0 Bluetooth
WIFI: 2.4G/5G

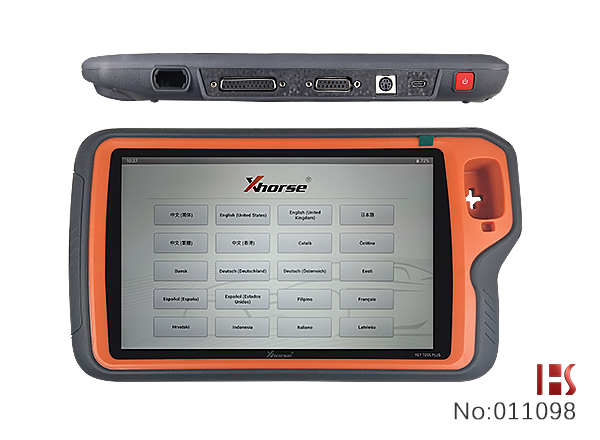

VVDI Key Tool Plus Display:
Light sensor: detect the brightness in the surrounding environment
Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)
----Support reading, writing, and cloning common immo transponders
----Support reading common ID transponders
----Support reading common IC transponders
----Support frequency detection of common vehicle remotes
Immo transponder placement hole for vehicle immo transponders
USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
PS2 port for remote programming
DB15 port: support standard & optional programming adapters with DB15 port
DB25 port for OBD matching
Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

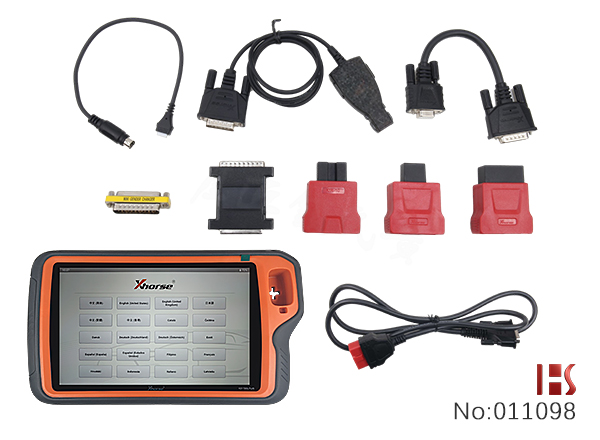

Package List:
1pc x Pad Main Unit
1pc x User Manual
1pc x Power Adapter
1pc x USB Cable 3.0 Type C

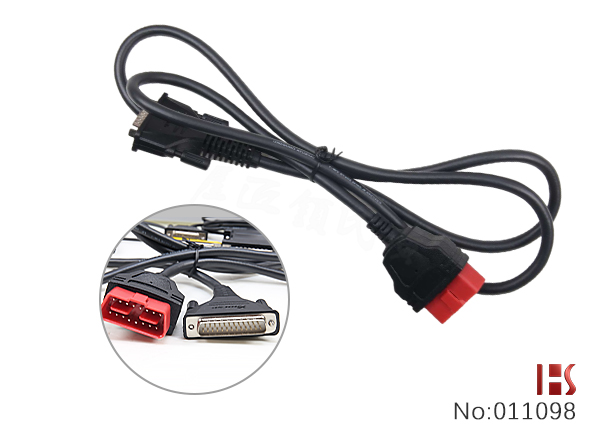

1pc x OBD DB25 Cable
1pc x OBD to Kia 10 Pin Connector
1pc xOBD to Honda 3 Pin Connector
1pc x Remote Programming Cable
1pc x Chip Storage Container
1pc x Prog DB15 Cable
1pc x Prog EEPROM Adapter
1pc x MB IR Adapter

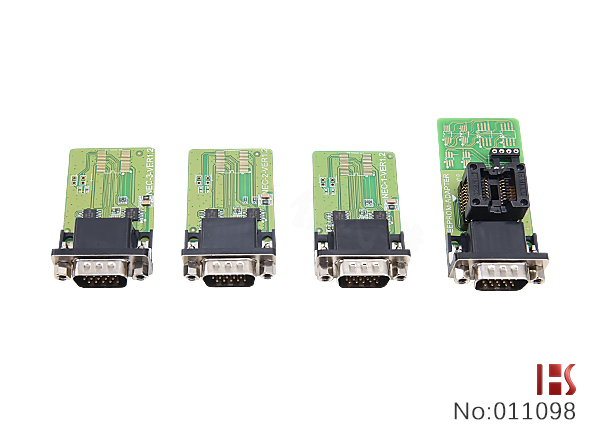

1pc x MB NEC1 Adapter
1pc x MB NEC2 Adapter
1pc x MB NEC3 Adapter
1pc x MB Power Adapter
1pc x MC9S12 Reflash Cable
1pc x ECU Cable
|
