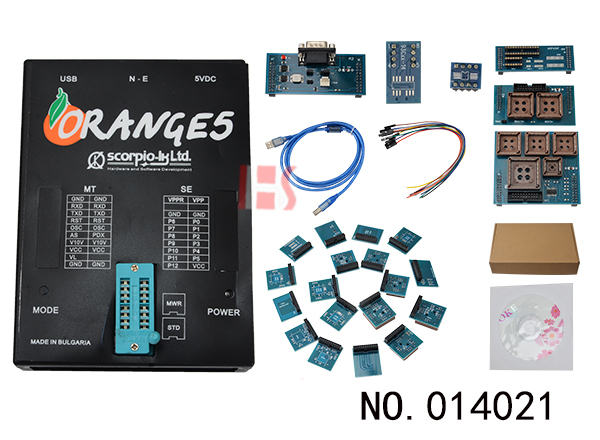

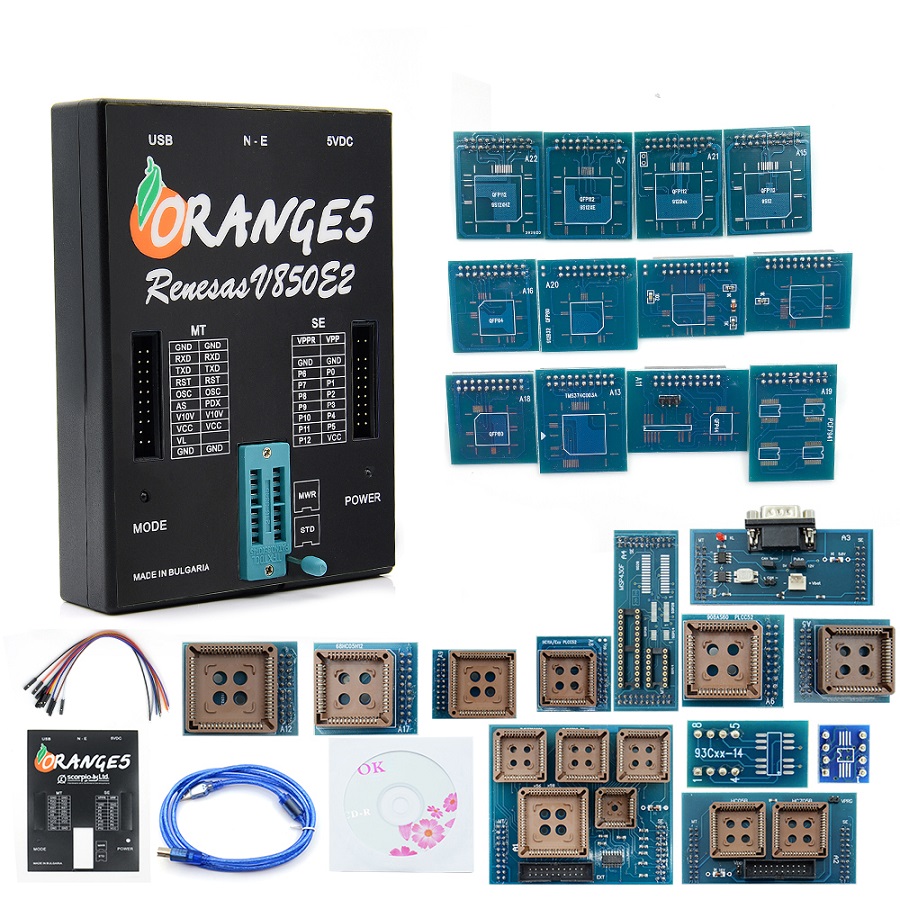

OEM ORANGE5 programmer with full adapters

OEM ORANGE5 programmer with full adapters

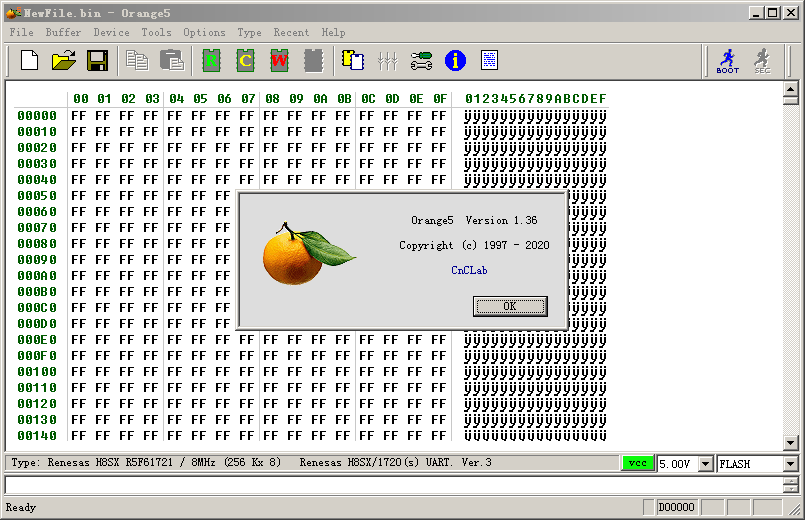

Software Version: V1.36, Software Does NOT Support Update.
Language: English
Systems: XP WIN7 WIN8

Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART

NEC V850E2 NEW

Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.

Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
