VVDI MB BGA Tool
Benz Key Programming
Update Online Free Lifetime
Top 6 Reasons to buy VVDI MB Tool:
1.VVDI MB Tool Language: English, Polish, Spanish (Will add more in future)
2.Latest VVDI MB Tool Version: 5.1.5
3.Fastest Benz password calculation speed.
4.High quality, Professional Design.
5.Support all key lost: W210, W204, W207, W166, W230, W246, W212, W212(old), some W216, W164 2009- and some others. Future will add more.
6.Support FBS4 disable key function (Other function->FBS4 disable key)- Support W166/W205/W213/W218/W222/W246 type
Notice:
1. If you had (Item Condor Dolphin, or Condor MINI PLus,or CONDOR XC-007 Master or CONDOR XC-MINI Master. You can get the password freely once a day. Contact us to bind for you. For the second or third calculate, it needs token or points. You can buy Tokens for VVDI MB BGA Tool Password Calculation from us.
2. VVDI MB Tool renew function, if your ECU can be read out via VVDI MB, it is supported, or not.
V5.1.5 VVDI MB Tool Update (2022-02-11 ) Require firmware V5.0.1
1. Bugfix
Xhorse VVDI MB BGA TOOL Functions:
1.Read Write Key
Identification key, IR read write BE key, read v51, v67 version's key password by NEC adapter, read activate blank BGA (OCF4) key, key current HASH (repair), renew, write into the used NEC key, write smart key etc.
2.Password Calculation
OBD read and calculate all (FBS3) can protocol EIS password, support BGA keys, NEC key, v51, v57 version password calculation, support all key lost W164, W216, W166, W209, W211, W212, W246, W212(old), W204, W207 etc, online calculation key password
3.ESL Tools
OBD (K line) read data, Renew ESL, replace ESL (no need to renew EIS), check ESL damage, repair W204 ESL
4.Read/ Write Gateway
Support OBD repair KM: W204, W207, W212, W251, W164, W211, W221, W216, W166.W172, W232, W205 etc
Support reading writing gateway EEPROM and FLASH: W211/W/164/W204/W207/W212/W221/W216 etc
5.EIS Tools
Read 8 write ES by OBD or ROBD auto detect, access to W164 W209 W211 without gateway. Read the old Motorola EIS(k-line)’s password.
Renew EIS, Replace EIS, Enable key, Disable key. Personalize W204 ESL
Test ESL Status/Working key etc
6.Prepare Key File
Online generate v11, v41, v51 version's key file, support Motorola EIS
EPROM file, with high efficiency, 1009 successful generate
7.Program ECU/Gearbox/ISM
Support renew ECU, gearbox and SM, write in VN, personalized etc
Latest Technical details:
Note: VVDI MB BGA tool update goes well, the following workable models are for reference only.
Model support IR/OBD:
W164, W164 2009+
A166, W197, W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906
Keys version supported:
v03, v06, v08
v05, v07, v09
v59, v61
VVDI Benz BGA tool Review:
1. i test password from 212 new model super good tool need pay 2 tokens need 10 min all ok
2. Do you have see video of this tool They say can do all key lost on w212.No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can. Mehaco/Mercedes instrument can do all keys lost on w212.. the option is available a few months.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK
Only support parts of HC05, HC08 Motorola EIS(Kline),if cannot support will show error, need to remove eis get eeprom.
We have tested W215 ok, but not means all W215 can support.in fact only support parts of this type.
vvdi mb, got a slk 2013 all keys lost, can this be done via obd.

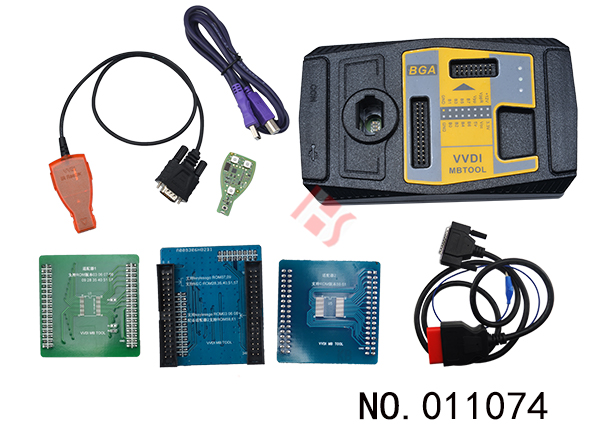

Package List:

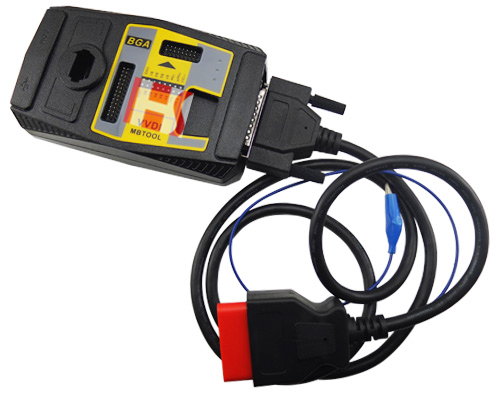

1. VVDI-MB TOOL device

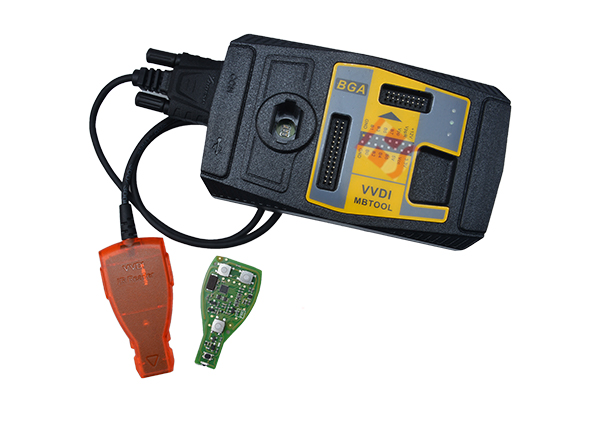

2. IR adaptor

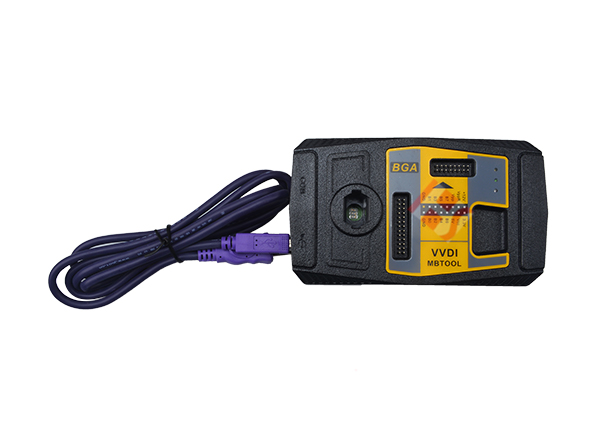

3. USB cable

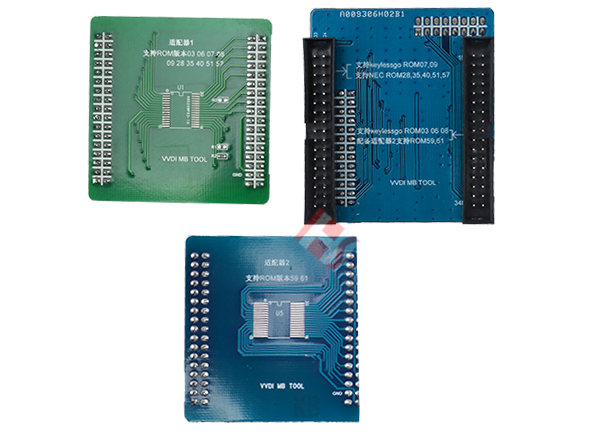

4. NEC adaptor 1
5. NEC adaptor 2
6. NEC adaptor base PCB
7. K Line in OBD line
8. OBD line
9. Plastic Box
10. Carton Box
VVDI MB Optional Adapter:
10. VVDI-MB NEC Key Adaptor (need buy separately)
10. EIS/EL Test Line Cables(need buy extra, No.11074-1)
12. VVDI-MB W204 ELV adaptor (need buy extra)
13. VVDI MB BGA Tool Power Adapter(Need buy extra, No.11074-2)
14.ELV Emulator for Benz 204 207 212(Need buy extra, No.11074-3)
FAQ
1.Q:i tested read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
CAN ANY ONE TEST
A:read eis via obd for W164, W169, W211, W209, require gateway connected
2.Q: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future?
Describe step by step procedure
A: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1.read all key lost EIS data-> save EIS data
2.read used EIS data enter a password,get erase password->renew used EIS.
3.load step1 EIS data to renewed EIS with password->write EIS data
4.load EIS data(with key password)->prepare key file
5.input new key to device IR reader->load key file->write
6.insert new key to EIS->EIS will learn the new key->key learn success
by the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer(VVDI PROG).
then load eeprom to VVDI MB TOOL prepare key file.
3.Q: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn't come on or crank, but the steering can lock and unlock. can someone guide me what to do?
A: about W204 all key lost(change new EIS),refer to following steps,maybe helpful:
1.Read EIS data via obd,then Save EIS data
2.adapt ESL:Read ESL data->Get Erase Password->Renew ESL
3.Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data
4.Personalize W204 ESL
5.Load EIS data(with Key Password)->Prepare Key File
6.Input new Key to device IR reader->Load Key file->write
7.Insert new Key to EIS->EIS will learn the new key->key learn success
4.Q:Is there a way to delete used key with VVDI MB bga?
A:Yes, VVDI MB TOOL support that!
5.Q:How to use VVDI MB Tool renew used EIS for 221 and fix it to another car?
if you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1.read all key lost EIS data-> save EIS data
2.read used EIS data enter password,get erase password->renew used EIS.
3.load step1 EIS data to renewed EIS with password->write EIS data
4.load EIS data(with key password)->prepare key file
5.input new key to device IR reader->load key file->write
6.insert new key to EIS->EIS will learn the new key->key learn success
|
