The XPROG supports programming of Motorola 68HC05xx,68HC08xx, 68HC11xx microcontrollers internal EEPROM and serial EEPROM's- most used programmable device in car radios, automotive computers(dashboards, AIRBAG, immobilizers), and industrial products.
Software V6.26 Firmware V5.9:
The XPROG supports programming of Motorola 68HC05xx,68HC08xx, 68HC11xx microcontrollers internal EEPROM and serial EEPROM's- most used programmable device in car radios, automotive computers(dashboards, AIRBAG, immobilizers), and industrial products.
Motorola microcontrollers(on-board programming):
MC68HC11A8,MC68HC11E9, MC68HC711E9, MC68HC811E2, MC68HC11E20, MC68HC11G5,MC68HC711G5, MC68HC11N4, MC68HC11F1, MC68HC11PH8, MC68HC711PH8,MC68HC11PA8, MC68HC711PA8, MC68HC11K4, MC68HC711K4, MC68HC11KA4,MC68HC711KA4, MC68HC11L6, MC68HC711L6,MC68HC11P2, MC68HC11F1
MC68HC11PH8(0H30RQ=614kHz) , MC68HC11PH8(3D64J Q=614kHz) , MC68HC11P2(0G10V Q=614kHz) ,MC68HC11P2(1E53M Q=614kHz) , MC68HC11P2(3E74J Q=614kHz) ,MC68HC11EA9(2D47J) , MC68HC11EA9(1D47J) , MC68HC11EA9,MC68HC05B6/16/32, MC68HC705B16/16N/32, MC68HC05X16/32,C68HC05B32 (newtype from Audi CHORUS),MC68HC05H12(0H57A) , MC68HC05E6(0G72G) ,MC68HC05E6(0F82B) , MC68HC05X32(0D69J;1H52A) , MC68HC05X32(0D53J) ,MC68HC08AZ32 , C68HC08AZ32(0J66D) , MC68HC08AS60 , MC68HC08AZ60 ,MC68HC08AZ60A ,
Serial EEPROM:
AT93C46,AT93C46A, AT93C56, AT93C57, AT93C66, AT59C11, AT59C12, AT59C13,CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04,CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32,CAT24C64, CAT24WC64, CAT64LC10, CAT64LC20, CAT64LC30, CAT93C46,CAT93C46A, CAT93C56, CAT93C57, CAT93C66, CAT93C66A, CAT93C86, 24C01A,24LC01B, 24C02A, 24LC02B, 24C04A, 24LC04B, 24C08A, 24LC08B, 24C16A,24LC16B, 24C32A, 24LC32B, 85C72, 85C82, 85C92, 93C06, 93C46, 93LCS46,93LC46B, 93C56, 93LC56, 93C66, 93LC66, 93C76, 93LC76, 93C86, 93LC86,M6M80011P, M6M80021P, M6M80041P, NM93C06, NM93C46, NM93C14, NM93C56,NM93CS56, NM93C66, NM93CS66, NM93C86A, SDE2506, SDE2526, X24C00,X24C01, X2402, X2404, X2408, X24164, X24165, X2444, X24C44.
Hardware Specifications :
Include high output current MPU.
External output for on-board device programming via universal XPROGconnector..
Serial port interface (up to 115K baud) works on (COM1, COM 2, COM3 orCOM4).
Function Specifications:
FileLoad / Save, Read, Write, Verify,Checksum, Security, Edit, Options Configuration.
Electrical Requirements:
OperatingVoltage : +12-15V DC.
Power Consumption : 50 mA.

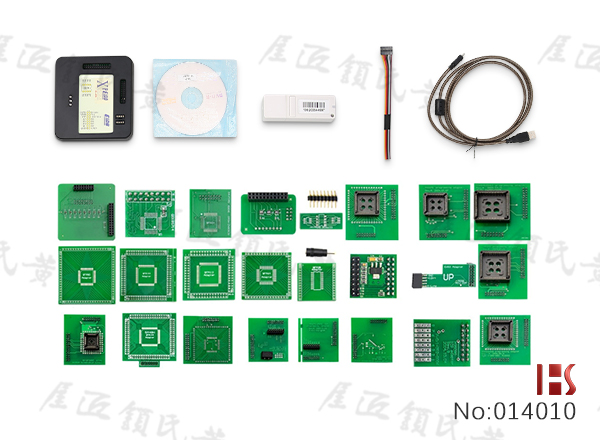

Package List:

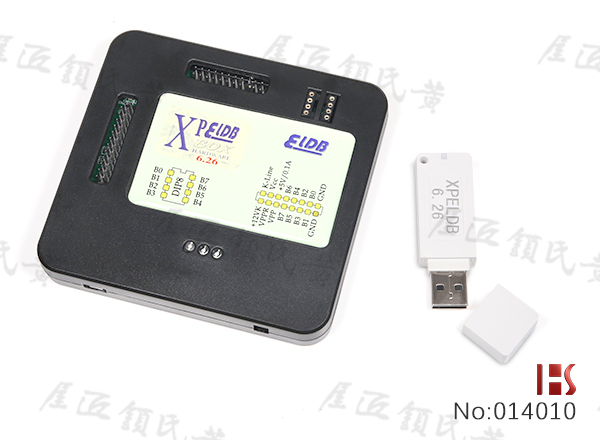

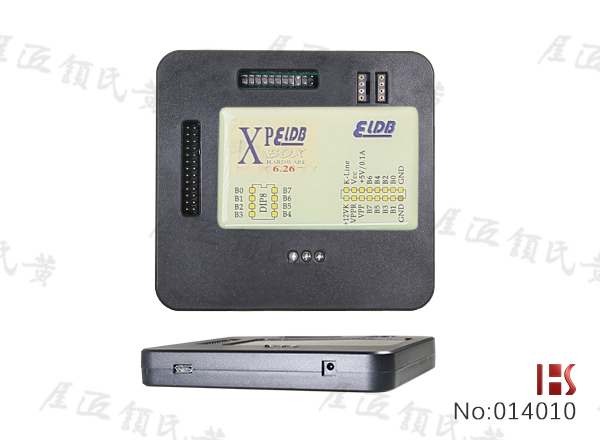

1pc x XPROG-Box

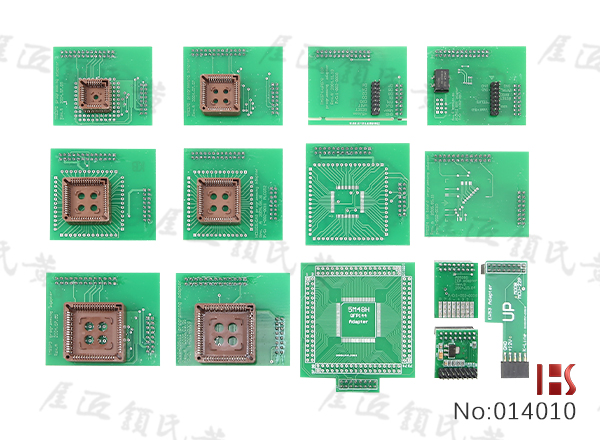

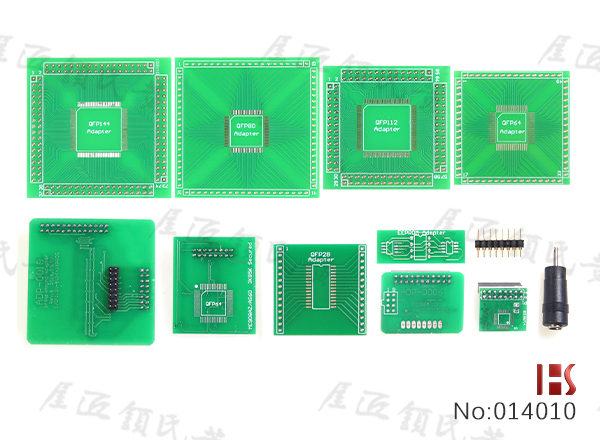

1setx Adapters Set

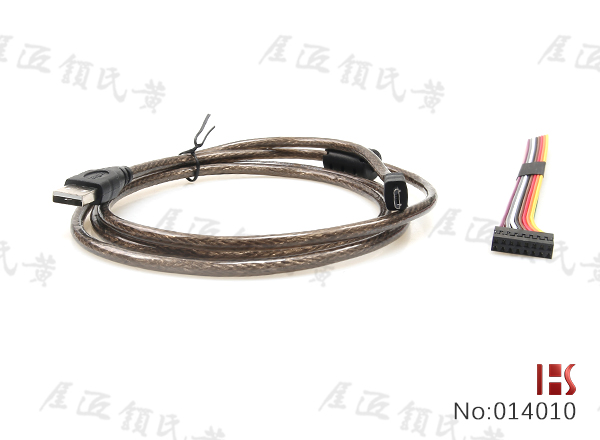

1pc x USB Cable.
1pc x USB Dongle
1pc x CD with XPROG-Box Software
Installation skills and technical support:
1. It must be used online (PLEASE connect internet to use it
2. The time of the computer must be adjusted to be accurate local time;
3. You must install V6.26 register file;
4. Only support English WINDOWS system, please do not use other language syste.
5. Close the software after using the programmer.
6. When you are not using the programmer, please do not open the software on the computer for a long time. You must close the software and unplug the usb dongle from the computer.
|
